GoldenEar Soundbar: SuperCinema 3D Array X
We have run out of stock for this item.

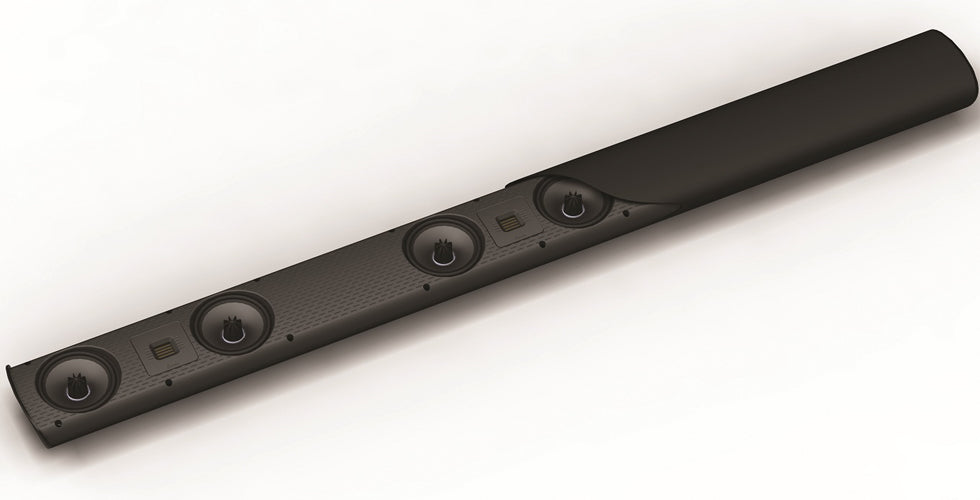

The SuperCinema® 3D Array® X and XL are remarkable new loudspeaker systems that combine the elegant form factor of a soundbar with the extraordinary sonic performance of a true surround system. The aesthetically compelling visual appeal of a soundbar is undeniable. Unfortunately, typical passive and active soundbars fail to achieve a truly convincing surround-sound experience when compared to a high-quality, fully discrete 5.1-channel surround system. GoldenEarTMhas developed a unique new 3-channel front soundstage soundbar technology that incorporates special 3D image optimization technology to achieve superbly lifelike, wide, deep 3D playback realism with virtually no acoustic coloration.
This technology, pioneered by Sandy Gross, effectively addresses certain problems that have been brought up recently in a 3D audio research project being conducted by Dr. Edgar Choueiri at Princeton University. Dr. Choueiri points out that the crosstalk that exists between the left and right loudspeakers and our contralateral ears, especially when the left and right channels are minimally separated as we normally encounter in soundbar systems, is deleterious to our ability to fully experience and process the imaging cues so necessary for 3D imaging perception. These imaging cues are present in the recordings but dramatically corrupted in typical soundbar playback.
The 3D Array Soundbars incorporate left-, center- and right-channel speakers, plus a second set of drivers that utilize 3D Array Technology to effectively cancel out this crosstalk distortion between the left and right channel. The result is a front soundstage that stretches from wall to wall and beyond, with amazing height, width and depth that effectively envelops the listeners in a true 180-degree plus soundfield, much wider than the actual physical soundbar. All this is contained within a sleek, attractive 2.7" thin enclosure that perfectly complements the latest
super-thin flat panel TVs. Exceptional performance is achieved with or without optional surround speakers. When the 3D Arrays are combined with surrounds (like our SuperSat 3s or Invisas) and a powered GoldenEar ForceField 3 or 4 Subwoofer, the result is a mind-boggling true surround- sound experience that rivals discrete 6-speaker systems. In fact, they actually surpasses all but the very best in the ability to dramatically recreate the realism of a live performance or a cinematic event.
The 3D Array Soundbars incorporate six or eight of GoldenEar’s cast spiderleg-basket 4.5 ̋ bass-midrange drivers with our unique Multi- Vaned Phase Plugs (MVPPTM). In addition, there are 3 of GoldenEar’s extraordinary High-Velocity Folded Ribbon tweeters (HVFRTM). Both utilize our new, patent pending,Mag-XCouplingTM Cross- over Technology, which delivers improved 3D imaging as well as smoother response and greater detail. The 3D Array X is an ideal match for 48 ̋ to 60" TVs, the 3D Array XL for 65" - and up TV's. The beautiful piano-gloss-black-finished cabinets are aerospace-grade extruded aluminum with a marble-powder-infused baffle and end-caps. They can be easily wall-mounted using their keyhole mounts or threaded brass inserts, or shelf-mounted using their adjustable rear support.
SUPERCINEMA®3D ARRAY®X SPECIFICATIONS
Dimensions: Speaker: 49-1/8" W x 2-7/8" D x 4-3/4" H. Frequency Response:
80 Hz – 35 kHz. Sensitivity: 91 dB. Nominal Impedance: 4Ω (Compatible with 8Ω). Driver Complement: Six 4-1/2" cast spiderleg-basket bass/midrange drivers,
Three High-Velocity Folded Ribbon (HVFRTM) high-frequency radiators.
Rec. Amp: 20 – 200 Watt/channel.
SUPERCINEMA®3D ARRAY® XL SPECIFICATIONS
Dimensions: Speaker: 62-1/8" W x 2-7/8" D x 4-3/4" H. Frequency Response:
80 Hz – 35 kHz. Sensitivity: 91 dB. Nominal Impedance: 4Ω (Compatible with 8Ω). Driver Complement: Eight 4-1/2" cast spiderleg-basket bass/midrange drivers, Three High-Velocity Folded Ribbon (HVFRTM) high-frequency radiators.
Rec. Amp: 20 – 300 Watt/channel.
